Hardware Peripherals: Xerx86
The following specifications are a guide for external peripherals you can attach to your Xerx86 device.

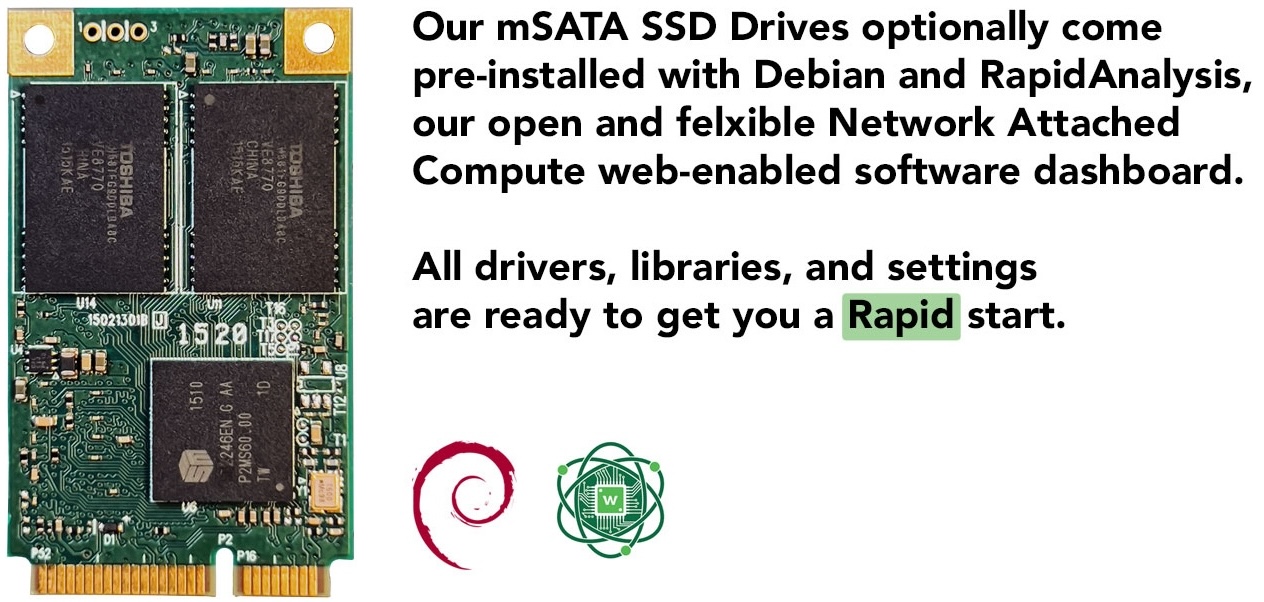

mSATA Specifications
Any standard mSATA drive will fit in a Xerx86 model device. The Xerx86 has 2 mSATA ports where one can be stacked vertically on the other.
RAM
The Xerx86 supports up to 8 GB of DDR3L 1333 RAM with a maximum bandwidth of 21.32 GB per sencond.
| Specifications | |
|---|---|
| Maximum Memory | 8 GB |
| Memory Type | DDR3L 1333 |
| Type | SODIMM |
| Pins | 204 PIN |
| Clock Speed | 1333 MHz |
| ECC | Non ECC |
Power Supply
The Xerx86 connects to power using an external 12 Volt 4 Amp Power Supply (12V 4A) with (5.5mm outside and 2.5mm inside) positive tip barrel connector.
