Racks
All rack designs will be engineered to fit in a typically sized commercial 3D printer. All prints can either be bought by us pre-printed, printed on your own home printer, or printed by any of our print-farm partners.
TIP
All our final 3D print models can be found at Printables, for single prints, or Makerworld, for large volume arrangements of our models.
Prinables https://www.printables.com/@Rapid_3032975
Makerworld https://makerworld.com/en/@RapidAnalysis

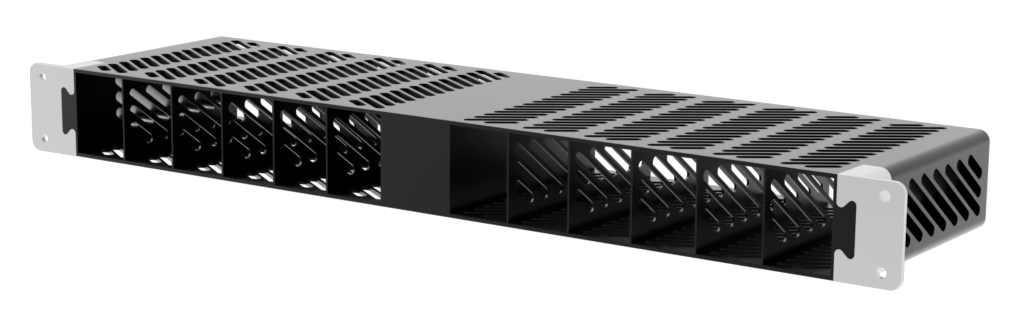

Full Size 19 inch 1U Rack
A full sized 19 inch rack mount for enclosing a cluster of 12 Xerxes Pi compute modules. The rack is designed to be printed in two pieces and connected together using a dove tail joint design. This rack should fit any 19 inch rack designed for servers. Each piece should fit on most print beds measuring 256mm x 256mm x 256mm or 10 inches x 10 inches x 10 inches.
INFO
License allows you to sell or re-design the 3D mini-racks with attribution to RapidAnalysis.
Designed by Lloyd Marshall - available for contract work or customisations. lloyd.marshall@rapidanalysis.com

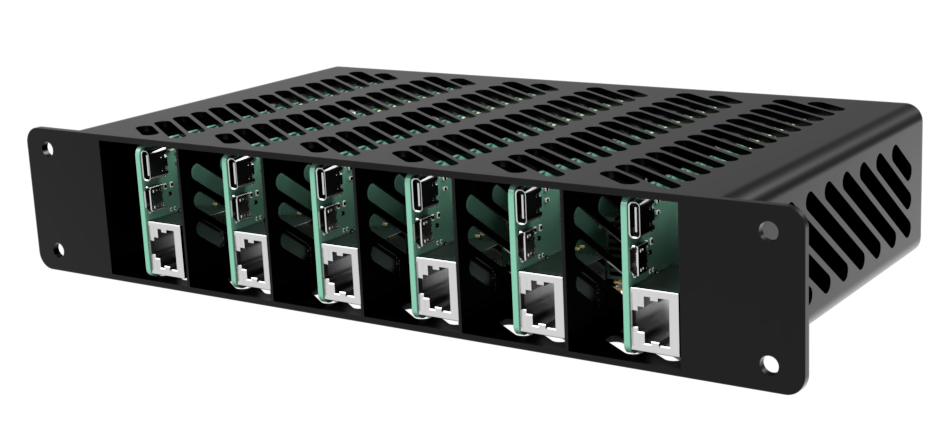

Mini Rack
This is a mini-rack made to hold 6 passively cooled Xerxes Pi compute carrier boards. It should fit any 10 inch mini-rack style rack housing. It can be printed with no supports diagonally flat on most normal sized print beds.
INFO
License allows you to sell or re-design the 3D mini-racks with attribution to RapidAnalysis.
Designed by Lloyd Marshall - available for contract work or customisations. lloyd.marshall@rapidanalysis.com

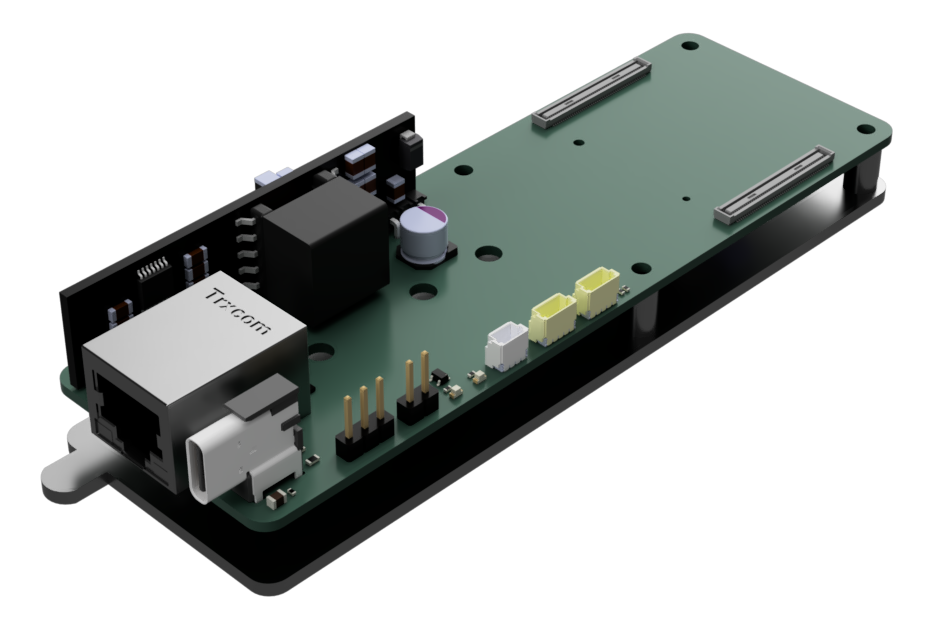

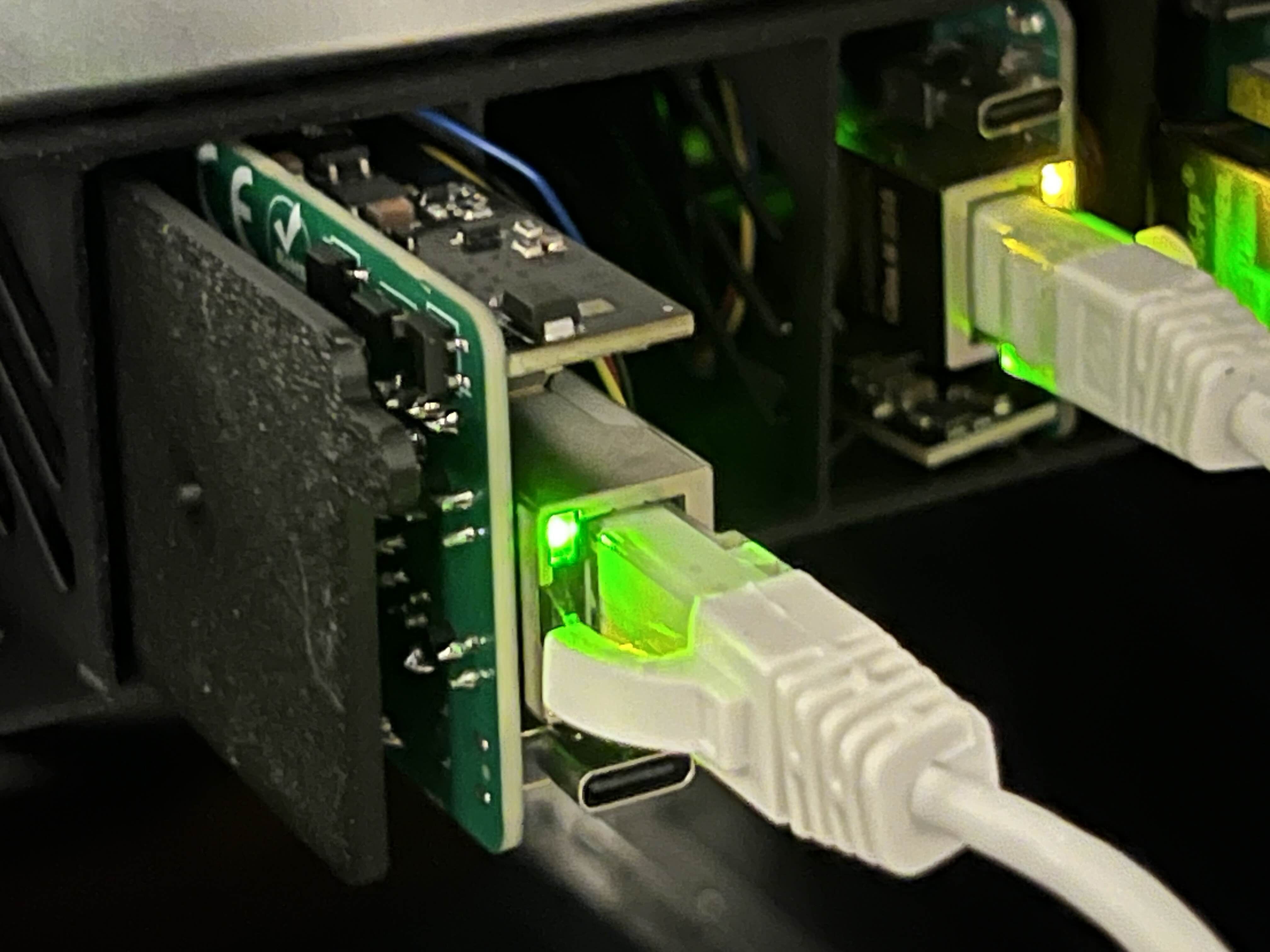

Mini Rack Sled
Our mini rack comes in a 6 slot version with room for a Xerxes Pi, Heatsink, and sled or rear Heatsink per slot.
INFO
License allows you to sell or re-design the 3D mini-racks with attribution to RapidAnalysis.
The sled provides a mounting hole for the longer M.2 2280 M-Key boards to be securely attached to the Xerxes Pi.
